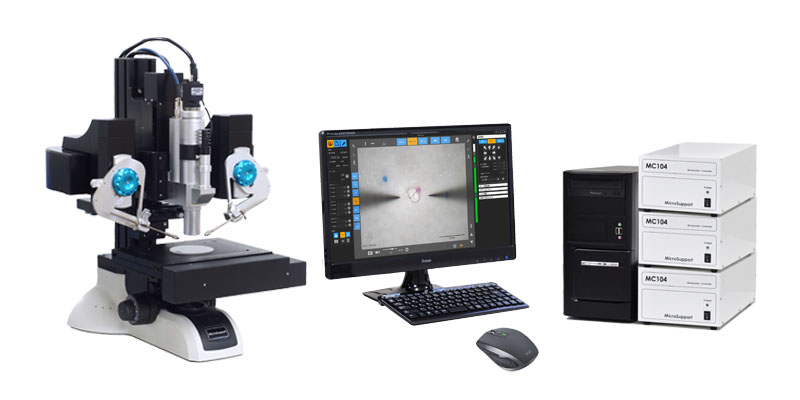

Axis Pro SS

Customized Electrical SystemCatalog and leaflet

Catalog and leaflet


  • Custom-designed Electric System
  • PC mouse-operated microscope-integrated electric micromanipulator system empowers seamless picking up and delivery of microscopic samples.Used for various applications, including FT-IR microscopy of foreign substances collection of FIB-processed TEM thin samples, and precise marking.
  • This model can be customized for large stages and equipment integration.

Axis Pro SS Features

  • Consistently sample ≥5μm objects with precision and ease
  • Efficient particle removal in cleanroom environments made possible
  • Fully covered and Enhanced safety, operability, and precision
  • Once the sample is placed, execute the desired operation with a PC mouse
  • Standard-equipped: Motorized second stage for seamless sample transfer
  • Program-controlled error-free sample transfer
  • Built-in storage space for keeping accessories
  • Simplified setup with the use of angle-fixed arms
  • Choose between one-arm type or two-arm type
  • Adjusts for various sample heights with its ascent and descent motion

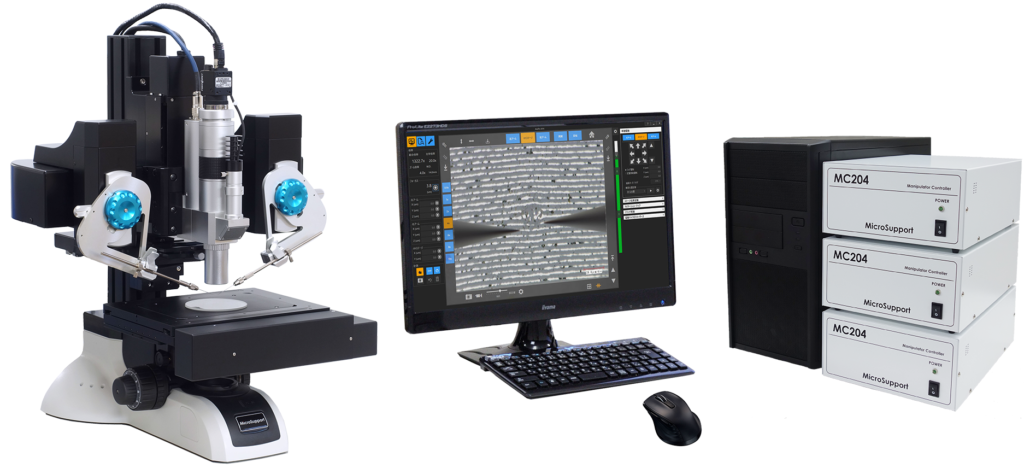

Axis Pro SS inclusions

  • AXIS PRO SS Main unit (configuration varies depending on specifications)
  • Gigabit Ethernet (GigE) camera
  • LED (reflection/transmission) lighting device.
  • Dedicated PC (Windows 10 IoT Enterprise for Embedded 64-bit).
  • 21.5″ LDC display (Full HD panel)
  • Dedicated stage controller MC-104.

Accessories (Option)

  • High-precision Electric Rotator – FIB lift-out
  • Electric Microtweezers: Grasping/picking up & releasing objects of ≥ 30μm
  • Rotational Electric Stage : Optimizing the sample orientation
  • Bi-axis Rotational Electric Stage : Coordinate orientation control of the sample and transfer location
  • Rotational Mechanical Stage : Ideal for fine adjustments during cutting and milling
  • Mechanical Bi-axis Sample Holder: Ideal for adjusting the sample parallelism
  • Darkfield illumination: For discerning fine scratches and foreign substances
  • Tilted Illumination Adapter: improves contrast, e.g. for undulating substances

Axis Pro Applicable Main Analytical Method

・Fourier transform infrared spectrometer (FTIR)
・Micro Fourier transform infrared spectrometer (μFTIR)
・Laser Raman Spectroscopy (μRAMAN)
・X-ray Diffraction (XRD)
・Wavelength Dispersive X-ray Fluorescence (WDXRF)
・Energy Dispersive X-ray Fluorescence (EDXRF)
・Electron Probe Micro Analyzer (EPMA)
・Gas Chromatography – Mass spectrometry(GC/MS)
・Liquid Chromatography – Mass Spectrometry(LC-MS)
・Fourier-Transform Nuclear Magnetic Resonance Spectrometry (FT-NMR)
・Transmission Electron Microscope (TEM)
・Scanning Electron Microscope (SEM)
・Focused Ion Beam (FIB)
・Scanning Probe Microscope (SPM)
・Time-of-Flight Secondary Ion Mass Spectrometry (TOF-SIMS)
